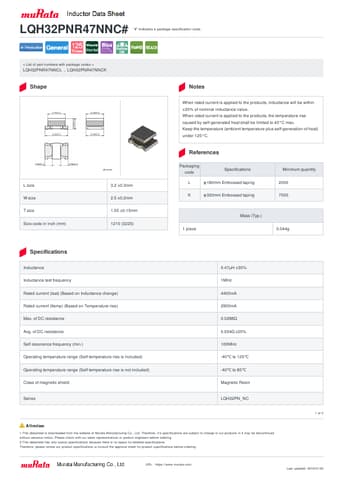

LQH32PNR47NNCL Datasheet (Murata)

LQH32PNR47NNCL, Inductor

LQH32PNR47NNC# “#” indicates a package specification code.

< List of part numbers with package codes > LQH32PNR47NNCL , LQH32PNR47NNCK Shape L size W size T size Size code in inch (mm) 3.2 ±0.3mm 2.5 ±0.2mm 1.55 ±0.15mm 1210 (3225) Notes When rated current is applied to the products, inductance will be within ±30% of nominal inductance value.

When rated current is applied to the products, the temperature rise caused by self-generated heat shall be limited to 40°C max.

Keep the temperature (
