LQH3NPN150MGRL Datasheet - Murata

LQH3NPN150MGRL Inductor

LQH3NPN150MGR# “#” indicates a package specification code. < List of part numbers with package codes > LQH3NPN150MGRL , LQH3NPN150MGRK Shape L size W size T size Size code in inch (mm) 3.0 ±0.1mm 3.0 ±0.1mm 0.9 ±0.1mm 1212 (3030) Notes When rated current is applied to the products, inductance will be within ±30% of initial inductance value range. Keep the temperature (ambient temperature plus self-generation of heat) under 125°C. When rated current is applied to the products, the temperatur.

LQH3NPN150MGRL Datasheet (122.34 KB)

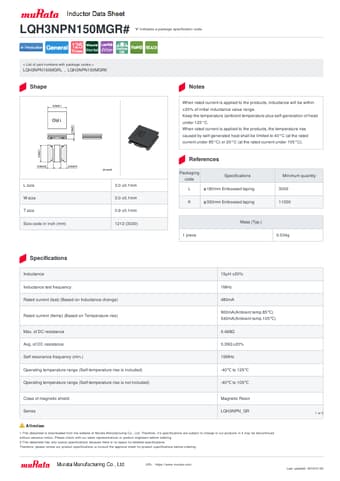

LQH3NPN150MGRL Datasheet Preview — Preview of LQH3NPN150MGRL PDF

Datasheet Details

Part number:

LQH3NPN150MGRL

Manufacturer:

Murata

File Size:

122.34 KB

Description:

Inductor.
