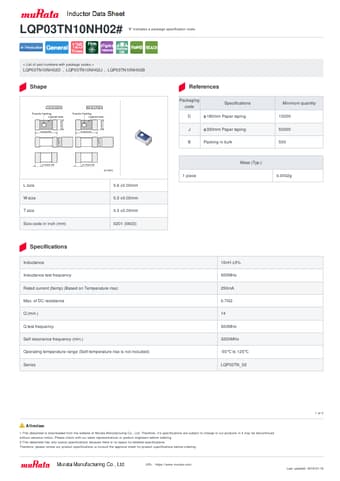

LQP03TN10NH02J Datasheet - Murata

LQP03TN10NH02J Inductor

LQP03TN10NH02# “#” indicates a package specification code. < List of part numbers with package codes > LQP03TN10NH02D , LQP03TN10NH02J , LQP03TN10NH02B Shape L size W size T size Size code in inch (mm) 0.6 ±0.03mm 0.3 ±0.03mm 0.3 ±0.03mm 0201 (0603) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max. of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not includ.

LQP03TN10NH02J Datasheet (90.65 KB)
