Datasheet Details
Part number:
LQP03TN1N5C02J, LQP03TN1N5C02D
Manufacturer:
Murata
File Size:
67.95 KB
Description:
Inductor.
Note:
This datasheet PDF includes multiple part numbers: LQP03TN1N5C02J, LQP03TN1N5C02D.
Please refer to the document for exact specifications by model.

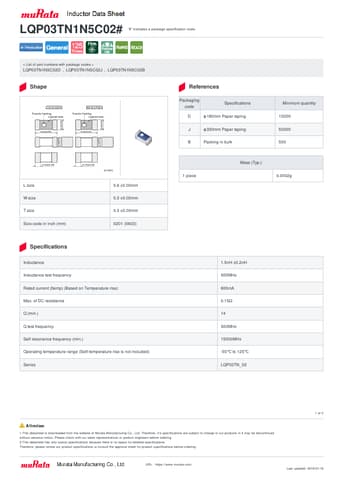

LQP03TN1N5C02J, LQP03TN1N5C02D, Inductor
LQP03TN1N5C02# “#” indicates a package specification code.
< List of part numbers with package codes > LQP03TN1N5C02D , LQP03TN1N5C02J , LQP03TN1N5C02B Shape L size W size T size Size code in inch (mm) 0.6 ±0.03mm 0.3 ±0.03mm 0.3 ±0.03mm 0201 (0603) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max.
of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not includ
