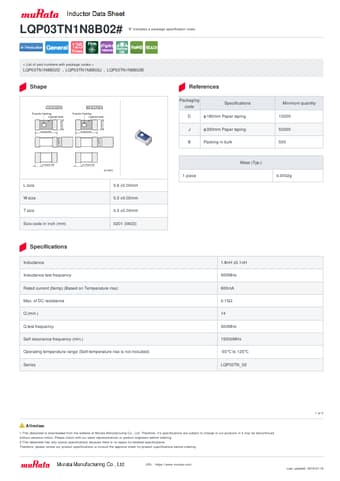

LQP03TN1N8B02D Datasheet (Murata)

LQP03TN1N8B02D, Inductor

LQP03TN1N8B02# “#” indicates a package specification code.

< List of part numbers with package codes > LQP03TN1N8B02D , LQP03TN1N8B02J , LQP03TN1N8B02B Shape L size W size T size Size code in inch (mm) 0.6 ±0.03mm 0.3 ±0.03mm 0.3 ±0.03mm 0201 (0603) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max.

of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not includ
