Datasheet Details
Part number:
LQP03TN2N6B02J, LQP03TN2N6B02D
Manufacturer:
Murata
File Size:
92.07 KB
Description:
Inductor.
Note:
This datasheet PDF includes multiple part numbers: LQP03TN2N6B02J, LQP03TN2N6B02D.
Please refer to the document for exact specifications by model.

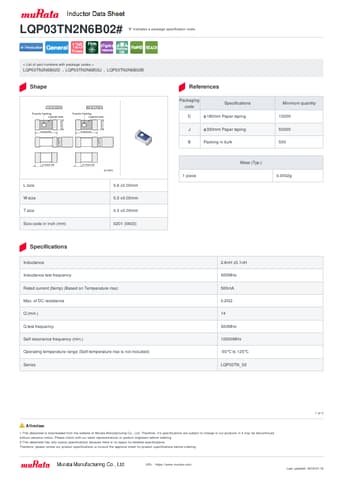

LQP03TN2N6B02J, LQP03TN2N6B02D, Inductor
LQP03TN2N6B02# “#” indicates a package specification code.
< List of part numbers with package codes > LQP03TN2N6B02D , LQP03TN2N6B02J , LQP03TN2N6B02B Shape L size W size T size Size code in inch (mm) 0.6 ±0.03mm 0.3 ±0.03mm 0.3 ±0.03mm 0201 (0603) Specifications Inductance Inductance test frequency Rated current (Itemp) (Based on Temperature rise) Max.
of DC resistance Q (min.) Q test frequency Self resonance frequency (min.) Operating temperature range (Self-temperature rise is not includ
