NMA1215SC Datasheet - Murata

NMA1215SC Isolated 1W Dual Output DC/DC Converters

The NMA series of industrial temperature range DC/DC converters are the standard building blocks for on-board distributed power systems. They are ideally suited for providing dual rail supplies on primarily digital boards with the added beneﬁt of galvanic isolation to reduce switching noise. All of .

www.murata-ps.com NMA 5V, 12V & 15V Series Isolated 1W Dual Output DC/DC Converters SELECTION GUIDE Order Code NMA0505DC NMA0509DC NMA0512DC NMA0515DC NMA0505SC NMA0509SC NMA0512SC NMA0515SC NMA1205DC NMA1209DC NMA1212DC NMA1215DC NMA1205SC NMA1209SC NMA1212SC NMA1215SC NMA1505DC NMA1512DC NMA1515DC NMA1505SC NMA1512SC NMA1515SC Nominal Input Voltage V 5 5 5 5 5 5 5 5 12 12 12 12 12 12 12 12 15 15 15 15 15 15 Output Voltage V ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±9 ±12 ±15 ±5 ±12 ±15 .

NMA1215SC Features

* RoHS compliant

* Efﬁciency up to 80%

* Power density up to 0.85W/cm3

* Wide temperature performance at full 1 Watt load,

* 40°C to 85°C

* Dual output from a single input rail

* UL 94V-0 package material

* No heatsink required

NMA1215SC Datasheet (250.49 KB)

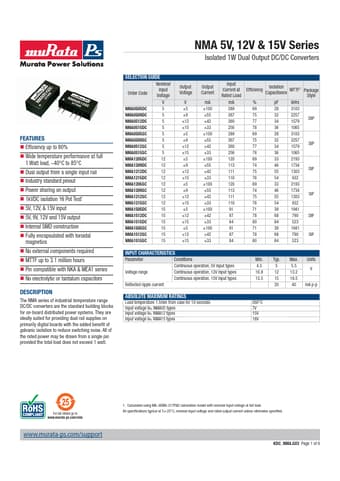

NMA1215SC Datasheet Preview — Preview of NMA1215SC PDF

Datasheet Details

Part number:

NMA1215SC

Manufacturer:

Murata

File Size:

250.49 KB

Description:

Isolated 1w dual output dc/dc converters.
