NTA1215MC, NTA0303MC - Isolated 1W Dual Output SM DC/DC Converters

Murata

The NTA1215MC by Murata is a Isolated 1W Dual Output SM DC/DC Converters. Below is the official datasheet preview.

📥 Download Datasheet

NTA1215MC Isolated 1W Dual Output SM DC/DC Converters by Murata - Datasheet Preview — Official preview page of the NTA1215MC Isolated 1W Dual Output SM DC/DC Converters datasheet (Murata).

Datasheet Details

Part number	NTA1215MC, NTA0303MC
Manufacturer	Murata
File Size	196.22 KB
Description	Isolated 1W Dual Output SM DC/DC Converters
Datasheet	NTA0303MC_Murata.pdf
Note	This datasheet PDF includes multiple part numbers: NTA1215MC, NTA0303MC. Please refer to the document for exact specifications by model.

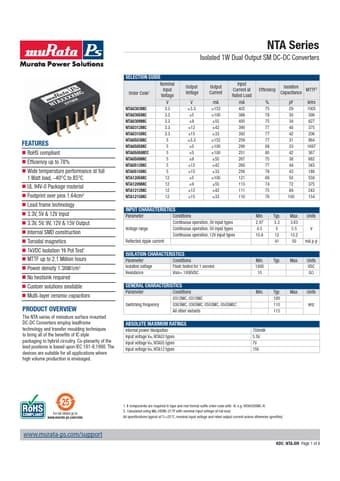

Additional preview pages of the NTA1215MC datasheet.

NTA1215MC Product details

Features

RoHS compliant.
Efﬁciency up to 78%.
Wide temperature performance at full 1 Watt load,.
40°C to 85°C.
UL 94V-0 Package material.
Footprint over pins 1.64cm2.
Lead frame technology.
3.3V, 5V & 12V Input.
3.3V, 5V, 9V, 12V & 15V Output.
Internal SMD construction.
Toroidal magnetics.
1kVDC Isolation ‘Hi Pot Test’.
MTTF up to 2.1 Million hours.
Power density 1.36W/cm3.
