NTE1205MC, NTE0303MC - DC/DC Converters

Murata

📥 Download Datasheet

NTE1205MC Datasheet Preview — This datasheet PDF includes multiple part numbers: NTE1205MC, NTE0303MC. Please refer to the document for exact specifications by model.

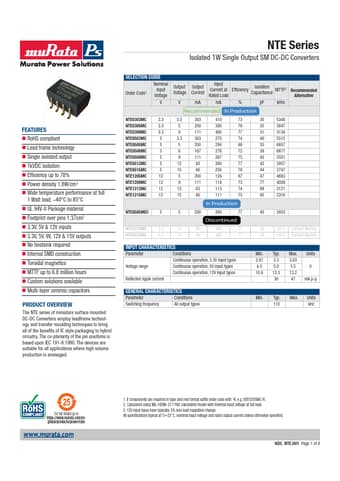

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NTE1205MC, NTE0303MC
Manufacturer	Murata
File Size	217.61 KB
Description	DC/DC Converters
Datasheet	NTE0303MC-Murata.pdf
Note	This datasheet PDF includes multiple part numbers: NTE1205MC, NTE0303MC. Please refer to the document for exact specifications by model.

NTE1205MC Product details

Features

RoHS compliant.
Lead frame technology.
Single isolated output.
1kVDC isolation.
Efﬁciency up to 78%.
Power density 1.8W/cm3.
Wide temperature performance at full 1 Watt load,.
40°C to 85°C.
UL 94V-0 Package material.
Footprint over pins 1.37cm2.
3.3V, 5V & 12V inputs.
3.3V, 5V, 9V, 12V & 15V outputs.
No heatsink required.
Internal SMD construction.
Toroidal magne.
