SCA3300 - 3-axis Industrial Accelerometer and Inclinometer

Features

  • 3-axis high performance accelerometer with ±1.5g to ±6g user selectable measurement range.
  • Extensive self-diagnostics features.
  • Excellent bias stability and low noise level.
  • Mechanically damped sensing element design for superior vibration robustness.
  • SPI digital interface.
  • 40°C…+125°C operating temperature range.
  • 3.0V…3.6V supply voltage with low 1mA current consumption.
  • RoHS compliant robust DFL plastic package suitable for lead free soldering.

📥 Download Datasheet

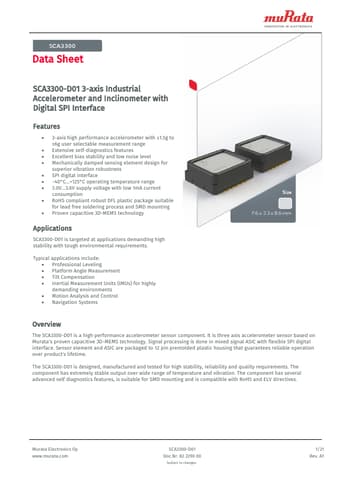

Datasheet preview – SCA3300

📁 Similar Datasheet

  • SCA3000 - 3-axis accelerometer (VTI technologies)
  • SCA3060-D01 - DIGITAL LOW POWER ACCELEROMETER (VTI technologies)
  • SCA3100-D01 - 3-AXIS ACCELEROMETER (VTI technologies)
  • SCA3100-D04 - 3-AXIS HIGH PERFORMANCE ACCELEROMETER (VTI technologies)
  • SCA3100-D07 - 3-AXIS HIGH PERFORMANCE ACCELEROMETER (VTI technologies)
  • SCA-14 - Cascadable GaAs HBT MMIC Amplifier (Stanford Microdevices)
  • SCA-20-12VDC-C - AUTOMOTIVE RELAY (LEONE)
  • SCA-20-9VDC-C - AUTOMOTIVE RELAY (LEONE)
  • SCA-3-11 - Power Splitter/Combiner 3 Way-0 50 100 to 940 MHz (Mini-Circuits)
  • SCA-4-10 - Power Splitter/Combiner 4 Way-0 50 5 to 1000 MHz (Mini-Circuits)
Other Datasheets by Murata
  • SCA3060 - Digital Low Cost Low Power Automotive Qualified 3-axis Accelerometer
  • SCA3060-D01 - DIGITAL LOW POWER ACCELEROMETER
  • SCA100T - DUAL AXIS INCLINOMETER
  • SCA100T-D07 - 2-AXIS HIGH PERFORMANCE ANALOG ACCELEROMETER
  • SCA103T - DIFFERENTIAL INCLINOMETER
  • SCA61T - 3D-MEMS-based single axis inclinometer
  • SCA830-D06 - 1-AXIS HIGH PERFORMANCE ACCELEROMETER

Full PDF Text Transcription

Click to expand full text
Data Sheet SCA3300-D01 3-axis Industrial Accelerometer and Inclinometer with Digital SPI Interface Features  3-axis high performance accelerometer with ±1.5g to ±6g user selectable measurement range  Extensive self-diagnostics features  Excellent bias stability and low noise level  Mechanically damped sensing element design for superior vibration robustness  SPI digital interface  −40°C…+125°C operating temperature range  3.0V…3.6V supply voltage with low 1mA current consumption  RoHS compliant robust DFL plastic package suitable for lead free soldering process and SMD mounting  Proven capacitive 3D-MEMS technology Applications SCA3300-D01 is targeted at applications demanding high stability with tough environmental requirements.
