SA40011 - Dual Axis Signal Conditioning Module

Product Overview

Part number	SA40011
Manufacturer	My Line
File Size	419.88 KB
Description	Dual Axis Signal Conditioning Module
Datasheet	SA40011 Datasheet

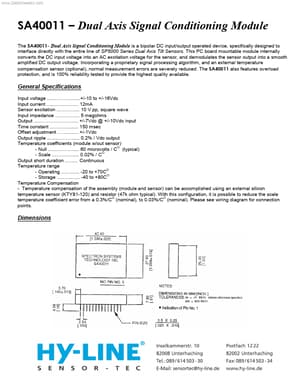

Additional preview pages of the SA40011 datasheet.

overload protection, and is 100% reliability tested to provide the highest quality available. General Specifications Input voltage …………+/-10 to +/-16Vdc Input current ………… 12mA Sensor excitation . . ……… 10 V pp, square wave Input impedance ……… 5 megohms Output ……………… +/-7Vdc @ +/-10Vdc input Time constant . ……… 150 msec Offset adjustment …… +/-1Vdc Output ripple ……… 0.2% / Vdc output Temperature coefficients (module w/out sensor) O - Null ……. … 60 microvolts / C (typical) O - Scale . ……… 0.02% / C O.
