CS5841

LCD Panel Timing Controller

CS5841 Features

* (continued) 1. can vary the pulse width & starting position of LP signal and POL signal polarity position changed along with LP signal 2. can vary the pulse width & starting position of CLKV signal and CLKVW time Control ASIC output timing design is based on Data Enable signals Resolution Auto detec

CS5841 General Description

w w CS5841 is a TFT-LCD timing controller, which is applicable to 6-bit data XGA (1024
*768), SXGA (1280
*1024) and SVGA (800
*600). CS5841 can update the response timing for display mode of XGA, SXGA and SVGA automatically. CS5841 provides a selectable polarity check function to inverse.

CS5841 Datasheet (161.46 KB)

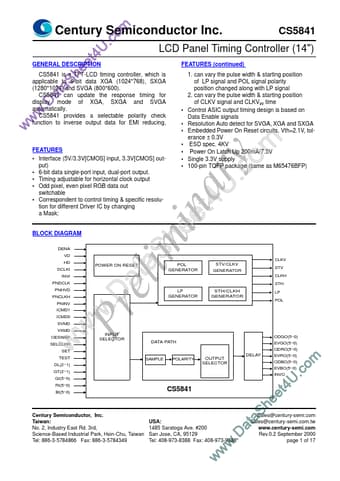

Preview of CS5841 PDF

Datasheet Details

Part number:

CS5841

Manufacturer:

Myson Century

File Size:

161.46 KB

Description:

Lcd panel timing controller.
