CS5843

LCD Panel Timing Controller

CS5843 Features

* (continued)

* Correspondent to control timing & specific resolution for different Driver IC by changing a Mask: 1. can vary the pulse width & starting position of LP signal and POL signal polarity position changed along with LP signal 2. can vary the pulse width & starting position of CLKV s

CS5843 General Description

w The CS5843 is a TFT-LCD timing controller, which is applicable to 6-bit data XGA (1024
*768), SXGA (1280
*1024). CS5843 can update the response timing for display mode of XGA and SXGA automatically. CS5843 provides a selectable polarity check function to inverse output data for EMI reducin.

CS5843 Datasheet (102.61 KB)

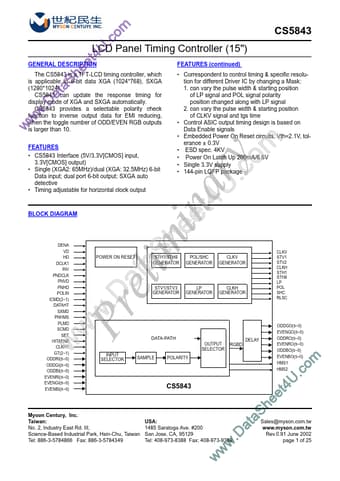

Preview of CS5843 PDF
