CS8953

8051 Embedded Micro-Controller

CS8953 Features

* † 1-Cycle 8051 core up to 24MHz operation | Two 16-bit Timers T0/T1 | One 16-bit ECT Timer T2 | Programmable 16-bit Watch Dog Timer | Two full-duplex UART ports | Up to 8 external interrupts shared with GPIO pins | One I2C Master Controller up to 400Kbit/sec † One I2C Slave Controller shared w

CS8953 General Description

CS8953 is a general purpose microcontroller with extensive peripherals that are suitable for wide range of application. The CPU is based on an enhanced 1Cycle 8051 core that is equivalent to 10 times faster than a conventional 12-Cycle 8051. Total on-chip SRAM is 1KB for data storage. There is total.

CS8953 Datasheet (2.90 MB)

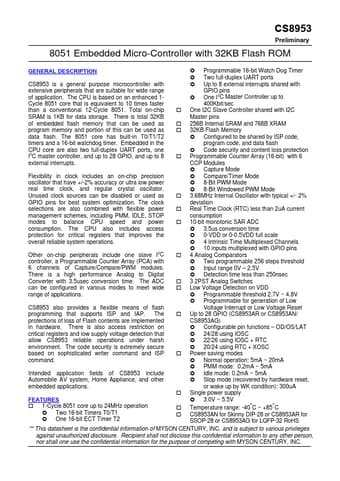

Preview of CS8953 PDF

Datasheet Details

Part number:

CS8953

Manufacturer:

Myson Century

File Size:

2.90 MB

Description:

8051 embedded micro-controller.
