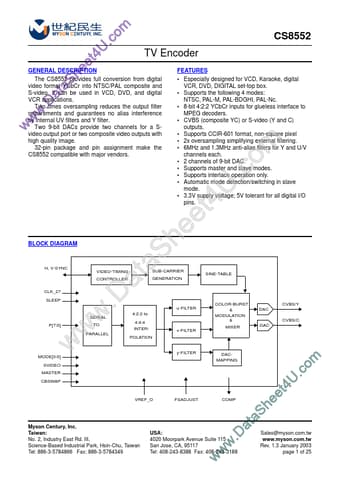

CS8552 Datasheet, encoder equivalent, Myson Technology

CS8552 Features

• Encoder CS8552
• Especially designed for VCD, Karaoke, digital VCR, DVD, DIGITAL set-top box.
• Supports the following 4 modes: NTSC, PAL-M, PAL-BDGHI, PAL-Nc.
• 8-bit

PDF File Details

Part number:

CS8552

Manufacturer:

Myson Technology

File Size:

233.97kb

Download:

📄 Datasheet

Description:

Tv encoder. w The CS8552 provides full conversion from digital video format YCbCr into NTSC/PAL composite and S-video. It can be used in VCD, D

CS8552 Application

• Applications Two times oversampling reduces the output filter requirements and guarantees no alias interference by internal UV filters and Y filter
