MTD492 - Coaxial Transceiver Interface

MTD492 Description

MYSON TECHNOLOGY Coaxial Transceiver Interface .
The MTD492 transceiver integrates the coaxial cable interface functions of the Medium Attachment Unit (MAU) in Ethernet or Cheapernet LAN applications.

MTD492 Features

* Compatible with IEEE 802.3 10Base5 (Ethernet) and 10Base2 (Cheapernet). Internal AUI squelch circuitry for noise rejection. Transmission IDL detection at end of packet and dribble bit rejection window

MTD492 Applications

* In an Ethernet 10Base5 network, MTD492 is mounted on the thick Ethernet coaxial cable and connects to a station through an AUI cable. For Cheapernet applications, MTD492 is connected to the Cheapernet coaxial cable through a BNC connector and is usually mounted on the LAN adapter in a station. BLO

📥 Download Datasheet

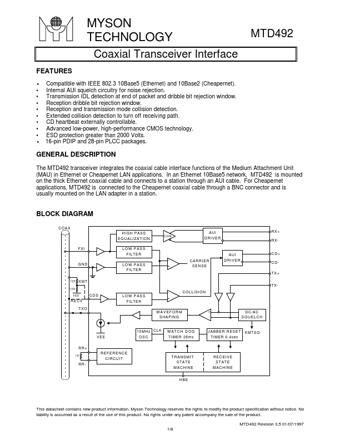

Preview of MTD492 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MTD492
Manufacturer
Myson
File Size
179.07 KB
Datasheet
MTD492_Myson.pdf
Description
Coaxial Transceiver Interface
