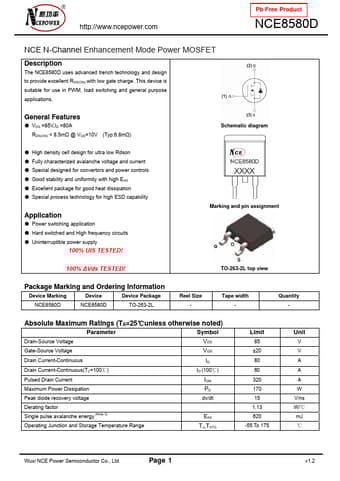

NCE8580D Datasheet Preview — Preview of NCE8580D PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: NCE8580D
Manufacturer: NCE Power Semiconductor
File Size: 314.84 KB
Datasheet: NCE8580D-NCEPowerSemiconductor.pdf
Description: N-Channel Enhancement Mode Power MOSFET

NCE8580D Product details

Description

The NCE8580D uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

Features

VDS =85V,ID =80A RDS(ON) < 8.5mΩ @ VGS=10V (Typ:6.8mΩ).
High density cell design for ultra low Rdson.
Fully characterized avalanche voltage and current.
Special designed for convertors and power controls.
Good stability and uniformity with high EAS.
Excellent package for good heat dissipation.
Special process technology for high ESD capability Application.
Power switching application.
Hard switched and High frequency circuits.
Uninterruptible.
