NCE6020L Datasheet, Mosfet, NCE Power

NCE6020L Features

• Mosfet
• VDS =60V,ID =20A RDS(ON) <45mΩ @ VGS=10V Schematic diagram
• High density cell design for ultra low Rdson
• Fully characterized Avalanche voltage and current

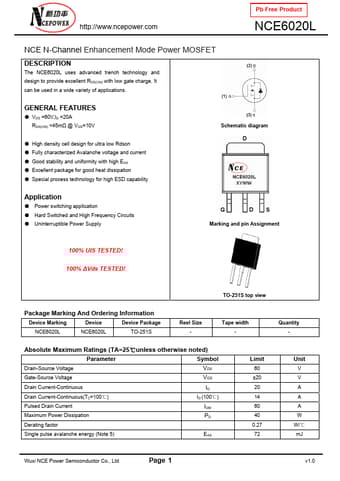

PDF File Details

Part number:

NCE6020L

Manufacturer:

NCE Power

File Size:

394.38kb

Download:

📄 Datasheet

Description:

Nce n-channel enhancement mode power mosfet. The NCE6020L uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide v

NCE6020L Application

• Applications GENERAL FEATURES
• VDS =60V,ID =20A RDS(ON) <45mΩ @ VGS=10V Schematic diagram
• High density cell design for ultra
