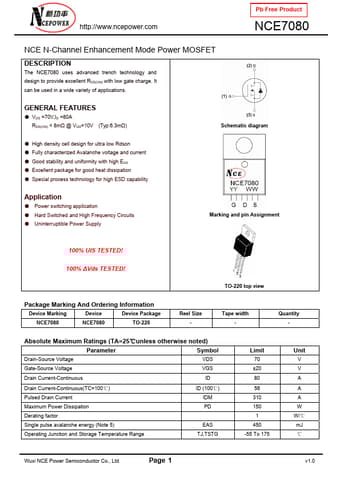

NCE7080 Datasheet, Mosfet, NCE Power

NCE7080 Features

• Mosfet
• VDS =70V,ID =80A RDS(ON) < 8mΩ @ VGS=10V (Typ:6.3mΩ) Schematic diagram
• High density cell design for ultra low Rdson
• Fully characterized Avalanche voltage

PDF File Details

Part number:

NCE7080

Manufacturer:

NCE Power

File Size:

441.08kb

Download:

📄 Datasheet

Description:

Nce n-channel enhancement mode power mosfet. The NCE7080 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge. It can be used in a wide va

NCE7080 Application

• Applications GENERAL FEATURES
• VDS =70V,ID =80A RDS(ON) < 8mΩ @ VGS=10V (Typ:6.3mΩ) Schematic diagram
• High density cell desig
