24M10A - UPC24M10A

Product Overview

NEC

📥 Download Datasheet

24M10A UPC24M10A by NEC - Datasheet Preview — Datasheet preview – 24M10A

Datasheet Details

Part number	24M10A
Manufacturer	NEC
File Size	137.89 KB
Description	UPC24M10A
Datasheet	24M10A Datasheet

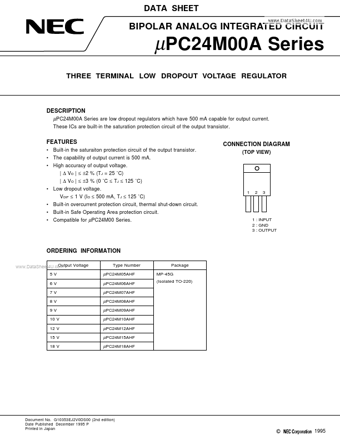

Additional preview pages of the 24M10A datasheet.

Product details

Description

µPC24M00A Series are low dropout regulators which have 500 mA capable for output current.

Features

Built-in the saturaiton protection circuit of the output transistor.
The capability of output current is 500 mA.
High accuracy of output voltage. | ∆ VO | ≤ ±2 % (TJ = 25 ˚C) | ∆ VO | ≤ ±3 % (0 ˚C ≤ TJ ≤ 125 ˚C).
Low dropout voltage. VDIF ≤ 1 V (IO ≤ 500 mA, TJ ≤ 125 ˚C).
Built-in overcurrent protection circuit, thermal shut-down circuit.
Built-in Safe Operating Area protection circuit.
Compatible for µPC24M00 Series.
