2561, PS2561

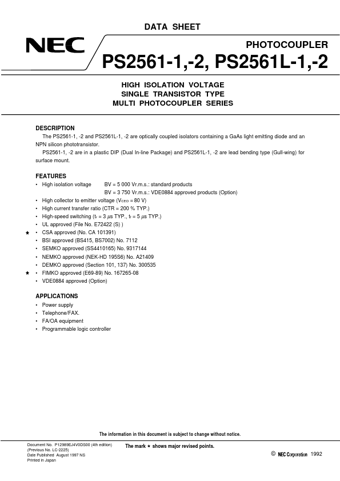

DATA SHEET PHOTOCOUPLER PS2561-1,-2, PS2561L-1,-2 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES .
The PS2561-1, -2 and PS2561L-1, -2 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

datasheet Preview Page 1 from Datasheet4u.com

2561_NEC.pdf

2561 Datasheet Preview — Preview of 2561 PDF

Datasheet Details

Part number:

2561

Manufacturer:

NEC

File Size:

100.07 KB

Description:

PS2561

Features

* High isolation voltage BV = 5 000 Vr. m. s. : standard products BV = 3 750 Vr. m. s. : VDE0884 approved products (Option)
* High collector to emitter voltage (VCEO = 80 V)
* High current transfer ratio (CTR = 200 % TYP. )
* High-speed switching (t r = 3 µs TYP. , tf = 5 µs

Applications

* Power supply
* Telephone/FAX.
* FA/OA equipment
* Programmable logic controller The information in this document is subject to change without notice. Document No. P12989EJ4V0DS00 (4th edition) (Previous No. LC-2225) Date Published August 1997 NS Printed in Japan T
