2SA1871 Datasheet - NEC

2SA1871, PNP SILICON TRIPLE DIFFUSED TRANSISTOR

DATA SHEET SILICON TRANSISTOR 2SA1871 PNP SILICON TRIPLE DIFFUSED TRANSISTOR FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING The 2SA1871 is a transistor deve.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

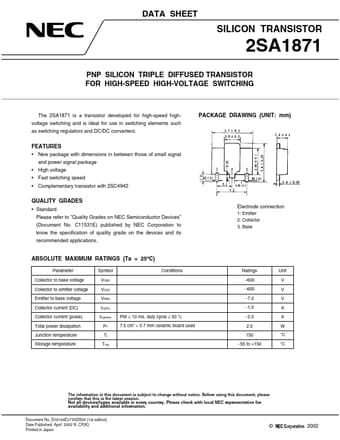

datasheet Preview Page 1 from Datasheet4u.com

2SA1871_NEC.pdf

2SA1871 Datasheet Preview — Preview of 2SA1871 PDF

Datasheet Details

Part number:

2SA1871

Manufacturer:

NEC

File Size:

116.61 KB

Description:

PNP SILICON TRIPLE DIFFUSED TRANSISTOR

Features

* New package with dimensions in between those of small signal and power signal package
* High voltage
* Fast switching speed
* Complementary transistor with 2SC4942 QUALITY GRADES
* Standard Please refer to “Quality Grades on NEC Semiconductor Devices” (Docu

Applications

* Electrode connection 1: Emitter 2: Collector 3: Base ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current (DC) Collector current (pulse) Total power dissipation Junction temperature Storage temperature Symbo
