2SD882, NPN Silicon Power Transistor

DATA SHEET NPN SILICON POWER TRANSISTOR 2SD882 NPN SILICON POWER TRANSISTOR .
The 2SD882 is NPN silicon transistor suited for the output stage of 3 watts audio amplifier, voltage regulator, DC-DC converter and relay driver.

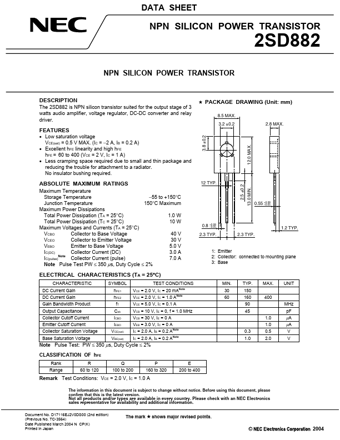

datasheet Preview Page 1 from Datasheet4u.com

2SD882_NEC.pdf

2SD882 Datasheet Preview — Preview of 2SD882 PDF

Datasheet Details

Part number:

2SD882

Manufacturer:

NEC

File Size:

281.46 KB

Description:

NPN Silicon Power Transistor

Features

* Low saturation voltage VCE(sat) = 0.5 V MAX. (IC =
* 2 A, IB = 0.2 A)
* Excellent hFE linearity and high hFE hFE = 60 to 400 (VCE = 2 V, IC = 1 A)
* Less cramping space required due to small and thin package and reducing the trouble for attachment to a radiator. No i

Applications

* of an NEC Electronics product depend on its quality grade, as indicated below. Customers must check the quality grade of each NEC Electronics product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio
