2SJ448 - P-Channel MOSFET

NEC

📥 Download Datasheet

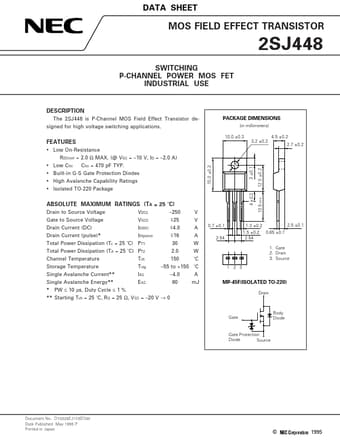

2SJ448 Datasheet Preview — Preview of 2SJ448 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SJ448
Manufacturer	NEC
File Size	121.35 KB
Description	P-Channel MOSFET
Datasheet	2SJ448_NEC.pdf

2SJ448 Product details

Description

The 2SJ448 is P-Channel MOS Field Effect Transistor designed for high voltage switching applications.

Features

Low On-Resistance RDS(on) = 2.0 Ω MAX. (@ VGS =.
10 V, ID =.
2.0 A).
15.0 ±0.3 3 ±0.1 4 ±0.2 Built-in G-S Gate Protection Diodes High Avalanche Capability Ratings Isolated TO-220 Package.
