2SK1658 - N-Channel MOSFET

Product Overview

NEC

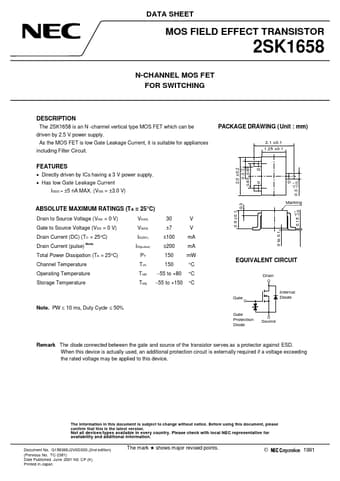

2SK1658 N-Channel MOSFET by NEC - Datasheet Preview — Datasheet preview – 2SK1658

Datasheet Details

Part number	2SK1658
Manufacturer	NEC
File Size	54.13 KB
Description	N-Channel MOSFET
Datasheet	2SK1658 Datasheet
Additional preview pages of the 2SK1658 datasheet.

Product details

Description

The 2SK1658 is an N -channel vertical type MOS FET which can be driven by 2.5 V power supply. 0 0.65 0.65 2.1 ±0.1 1.25 ±0.1 PACKAGE DRAWING (Unit : mm)

Features

Directly driven by ICs having a 3 V power supply.
Has low Gate Leakage Current IGSS = ±5 nA MAX. (VGS = ±3.0 V) G 0.9 ±0.1 Drain to Source Voltage (VGS = 0 V) Gate to Source Voltage (VDS = 0 V) Drain Current (DC) (TC = 25°C) Drain Current (pulse) Note VDSS VGSS ID(DC) ID(pulse) PT Tch Topt Tstg 30 ±7 ±100 ±200 150 150.
55 to +80.
55 to +150 V V mA mA mW °C °C °C Total Power Dissipation (TA = 25°C) Channel Temperature Operating Temperature Storage Temper.
