Part number:
2SK3480
Manufacturer:
NEC
File Size:
103.17 KB
Description:

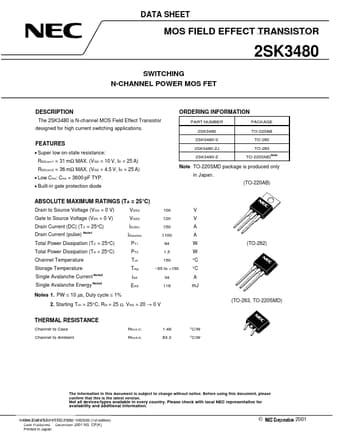

Switching n-channel power mosfet.
* Super low on-state resistance: RDS(on)1 = 31 mΩ MAX. (VGS = 10 V, ID = 25 A) RDS(on)2 = 36 mΩ MAX. (VGS = 4.5 V, ID = 25 A)
* Low Ciss: Ciss = 3600 pF TYP.
* Built-in gate protection diode Note TO-220SMD package is produced only in Japan. (TO-220AB) ABSOLUTE MAXIMUM RATIN
2SK3480
NEC
103.17 KB
Switching n-channel power mosfet.
