2SK3811 Datasheet, Mosfet, NEC

2SK3811 Features

  • Mosfet
  • Super low on-state resistance RDS(on) = 1.8 mΩ MAX. (VGS = 10 V, ID = 55 A)
  • High Current Rating: ID(DC) = ±110 A (TO-263) ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Drain

PDF File Details

Part number:

2SK3811

Manufacturer:

NEC

File Size:

168.16kb

Download:

📄 Datasheet

Description:

Switching n-channel power mosfet. The 2SK3811 is N-channel MOS Field Effect Transistor designed for high current switching applications. ORDERING INFORMATION PART NUM

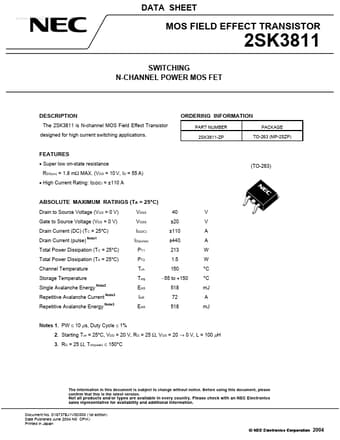

Datasheet Preview: 2SK3811 📥 Download PDF (168.16kb)
Page 2 of 2SK3811 Page 3 of 2SK3811

2SK3811 Application

  • Applications ORDERING INFORMATION PART NUMBER 2SK3811-ZP PACKAGE TO-263 (MP-25ZP) FEATURES
  • Super low on-state resistance RDS(on) = 1.8
