780023A Features

* Internal ROM and RAM Item Part Number Program Memory (Internal ROM) 8 KB 16 KB 24 KB 32 KB 1024 bytes Data Memory (Internal High-Speed RAM) 512 bytes Package

* 64-pin plastic SDIP (19.05 mm (750))

* 64-pin plastic QFP (14 x 14)

* 64-pin plastic LQFP (14 x 14)

780023A General Description

The µPD780021A, 780022A, 780023A, and 780024A are members of the µPD780024A Subseries of the 78K/0 Series. Only selected functions of the existing µPD78054 Subseries are provided, and the serial interface is enhanced. The µPD780021AY, 780022AY, 780023AY, and 780024AY are the µPD780024A Subseries wit.

780023A Datasheet (773.64 KB)

Preview of 780023A PDF

Datasheet Details

Part number:

780023A

Manufacturer:

NEC

File Size:

773.64 KB

Description:

Up780023a.

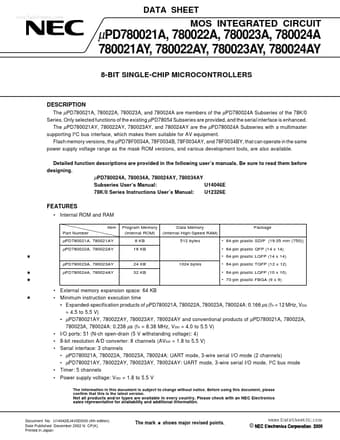

DATA SHEET www.DataSheet4U.com µPD780021A, 780022A, 780023A, 780024A 780021AY, 780022AY, 780023AY, 780024AY 8-BIT SINGLE-CHIP MICROCONTROLLERS MOS I.
