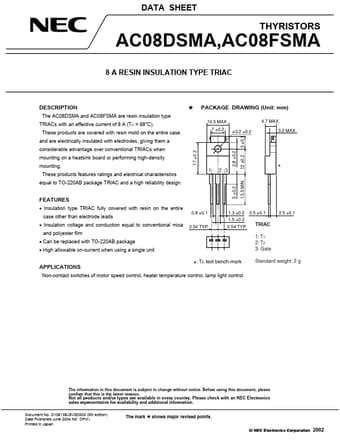

AC08FSMA (AC08DSMA / AC08FSMA) 8A RESIN INSULATION TYPE TRIAC

The AC08DSMA and AC08FSMA are resin insulation type TRIACs with an effective current of 8 A (TC = 88°C). These products are covered with resin mold on the entire case and are electrically insulated with electrodes, giving them a 17 ±0.2 PACKAGE DRAWING (Unit: mm) 10.5 MAX. 7 ±0.2 4.7 MAX. φ 3.2 ±0.

AC08FSMA Features

* ratings and electrical characteristics equal to TO-220AB package TRIAC and a high reliability design. 12 ±0.2 1 2 3

* FEATURES

* Insulation type TRIAC fully covered with resin on the entire case other than electrode leads

* Insulation voltage and conduction equal to conventi

AC08DSMA_NEC.pdf

This datasheet PDF includes multiple part numbers: AC08FSMA, AC08DSMA. Please refer to the document for exact specifications by model.
AC08FSMA Datasheet Preview Page 2 AC08FSMA Datasheet Preview Page 3

Datasheet Details

Part number:

AC08FSMA, AC08DSMA

Manufacturer:

NEC

File Size:

144.44 KB

Description:

(ac08dsma / ac08fsma) 8a resin insulation type triac.

Note:

This datasheet PDF includes multiple part numbers: AC08FSMA, AC08DSMA.
Please refer to the document for exact specifications by model.
