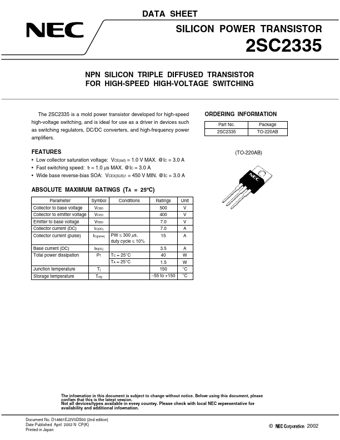

www.DataSheet4U.com DATA SHEET SILICON POWER TRANSISTOR 2SC2335 NPN SILICON TRIPLE DIFFUSED TRANSISTOR FOR HIGH-SPEED HIGH-VOLTAGE SWITCHING The 2SC.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

📥 Download Datasheet

Preview of C2335 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
C2335
Manufacturer
NEC
File Size
130.72 KB
Datasheet
C2335-NEC.pdf
Description
2SC2335

Features

* Low collector saturation voltage: VCE(sat) = 1.0 V MAX. @IC = 3.0 A
* Fast switching speed: tf = 1.0 µs MAX. @IC = 3.0 A
* Wide base reverse-bias SOA: VCEX(SUS)1 = 450 V MIN. @IC = 3.0 A ABSOLUTE MAXIMUM RATINGS (TA = 25°C) Parameter Collector to base voltage Collector to

Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v
