C324C Datasheet - NEC

UPC324C

C324C Features

* Internal frequency compensation

* Wide output voltage swing V

* to V+

* 1.5 V

* Common Mode input voltage range includes V

* Wide supply range 3 V to 30 V (Single) ± 1.5 V to ± 15 V (Split)

* Output short circuit protection EQUIVALENT

C324C General Description

The µPC324 is a quad operational amplifier which is designed to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the power supply current drain is very low. Further advantage, the input commonmode voltage can also swing to gro.

C324C Datasheet (105.49 KB)

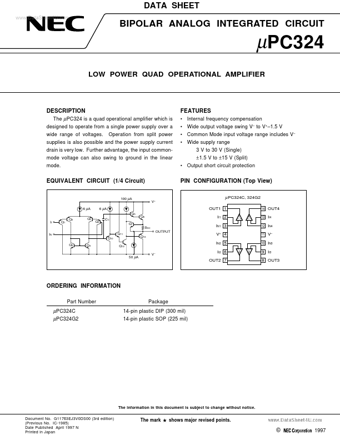

C324C Datasheet Preview — Preview of C324C PDF

Datasheet Details

Part number:

C324C

Manufacturer:

NEC

File Size:

105.49 KB

Description:

upc324c.
