Part number C4554
Manufacturer NEC
File Size 145.76 KB
Description 2SC4554
Datasheet download datasheet C4554 Datasheet
Additional preview pages of the C4554 datasheet.

📁 Similar Datasheet

  • C4550 - OCXO (ETC)
  • C4552 - 2SC4552 (Renesas)
  • C4555 - 2SC4555 (Sanyo)
  • C4557 - 2SC4557 (Allegro Micro Systems)
  • C4557C - UPC4557C (ETC)
  • C4558 - 2SC4558 (Sanken Electric)
  • C4559 - Silicon NPN Transistor (Panasonic)
  • C45 - SILICON CONTROLLED RECTIFIER (National Electronics)
  • C450 - Phase Control SCR (Powerex)
  • C4500 - OCXO (Vectron International)
Other Datasheets by NEC
  • C4551 - NPN Silicon Transistor
  • C4553 - 2SC4553
  • C4558C - UPC4558C
  • C452G - UPC452G
  • C4570C - UPC4570C
  • C4570HA - UPC4570
  • C4574C - QUAD ULTRA LOW-NOISE / WIDEBAND / OPERATIONAL AMPLIFIER
  • C4574G2 - QUAD ULTRA LOW-NOISE / WIDEBAND / OPERATIONAL AMPLIFIER

Full PDF Text Transcription

Click to expand full text

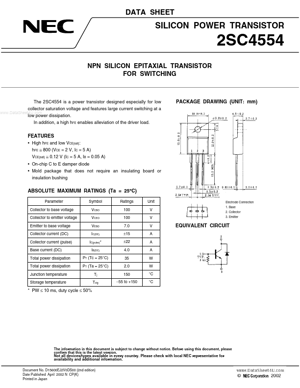

DATA SHEET SILICON POWER TRANSISTOR 2SC4554 NPN SILICON EPITAXIAL TRANSISTOR FOR SWITCHING The 2SC4554 is a power transistor designed especially for low www.DataSheet4U.com PACKAGE DRAWING (UNIT: mm) collector saturation voltage and features large current switching at a low power dissipation. In addition, a high hFE enables alleviation of the driver load. FEATURES • High hFE and low VCE(sat): hFE ≅ 800 (VCE = 2 V, IC = 5 A) VCE(sat) ≅ 0.12 V (IC = 5 A, IB = 0.
