D17006AGF-011

UPD17006AGF-011

D17006AGF-011 Features

* q Preset memory Five stations each for four bands, FM1, FM2, FM3, and AM (shared with MW and LW), totaling 20 stations q RDS function

* Broadcasting station name display (PS)

* AF operation

* AF list of up to 25 stations can be loaded.

* Supports METHOD A/B

D17006AGF-011 General Description

The µPD17006AGF-011 is a 4-bit CMOS microcontroller for digital tuning and can receive European FM, MW, and LW bands. It contains a prescaler (150 MHz MAX.), PLL frequency synthesizer, and IF counter. This microcontroller supports European Radio Data System (RDS) and implements various RDS functions.

D17006AGF-011 Datasheet (710.53 KB)

Preview of D17006AGF-011 PDF

Datasheet Details

Part number:

D17006AGF-011

Manufacturer:

NEC

File Size:

710.53 KB

Description:

upd17006agf-011.

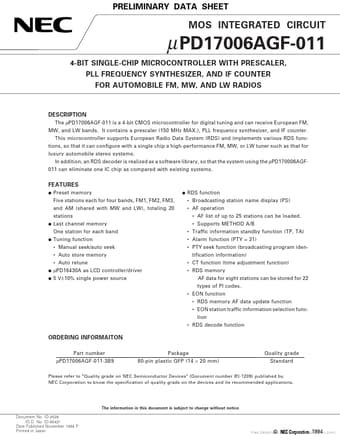

PRELIMINARY DATA SHEET MOS INTEGRATED CIRCUIT µ PD17006AGF-011 4-BIT SINGLE-CHIP MICROCONTROLLER WITH PRESCALER, PLL FREQUENCY SYNTHESIZER, AND IF C.
