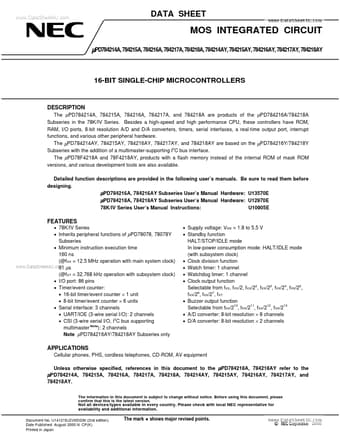

Preview of D784214A PDF

Datasheet Details

Part number:

D784214A

Manufacturer:

NEC

File Size:

744.91 KB

Description:

Upd784214a.
www.DataSheet4U.com DATA SHEET MOS INTEGRATED CIRCUIT µPD784214A, 784215A, 784216A, 784217A, 784218A, 784214AY, 784215AY, 784216AY, 784217AY, 784218.

D784214A Features

* 78K/IV Series

* Inherits peripheral functions of µPD78078, 78078Y Subseries

* Minimum instruction execution time 160 ns (@fXX = 12.5 MHz operation with main system clock) www.DataSheet4U.com 61 µs (@fXT = 32.768 kHz operation with subsystem clock)

* I/O port: 86 pin

D784214A General Description

The µPD784214A, 784215A, 784216A, 784217A, and 784218A are products of the µPD784216A/784218A Subseries in the 78K/IV Series. Besides a high-speed and high performance CPU, these controllers have ROM, RAM, I/O ports, 8-bit resolution A/D and D/A converters, timers, serial interfaces, a real-time out.
