D78C14G

UPD78C14G

D78C14G Features

* High reliability as compared with µPD78C14 159 instructions: 87AD instruction set Multiply and divide instructions, 16-bit arithmetic operation instructions Instruction cycle: 0.8 µs at 15 MHz Internal ROM: 16384 W x 8 Internal RAM: 256 W x 8 Direct addressing to an external memory (ROM/RAM) up to 6

D78C14G General Description

Method 14 Instruction Code Description 16 Instruction Execution Time17 4. 5. 6. 7. 8. LIST OF MODE REGISTERS 29 ELECTRICAL SPECIFICATIONS 30 CHARACTERISTIC CURVES (reference value) 41 PACKAGE DRAWINGS 44 RECOMMENDED SOLDERING CONDITIONS 47 APPENDIX DEVELOPMENT TOOLS 49 5 www.DataSheet4U.com µP.

D78C14G Datasheet (320.80 KB)

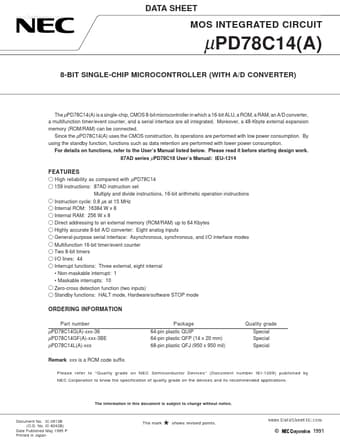

Preview of D78C14G PDF

Datasheet Details

Part number:

D78C14G

Manufacturer:

NEC

File Size:

320.80 KB

Description:

Upd78c14g.
DATA SHEET www.DataSheet4U.com MOS INTEGRATED CIRCUIT µPD78C14(A) 8-BIT SINGLE-CHIP MICROCONTROLLER (WITH A/D CONVERTER) The µPD78C14(A) is a singl.
