DATA SHEET µPD78F9177, 78F9177Y 8-BIT SINGLE-CHIP MICROCONTROLLER MOS INTEGRATED CIRCUIT The µPD78F9177 and µPD78F9177Y are µPD789177, 789177Y Subs.
are provided in the following user’s manuals.

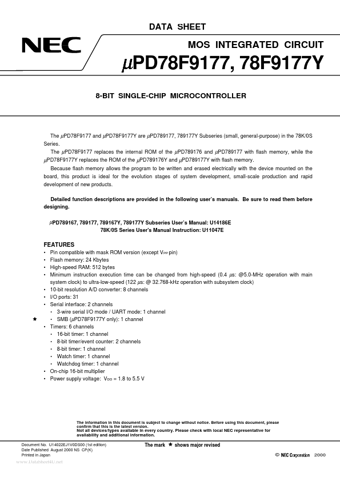

datasheet Preview Page 1 from Datasheet4u.com

D78F9177_NEC.pdf

D78F9177 Datasheet Preview — Preview of D78F9177 PDF

Datasheet Details

Part number:

D78F9177

Manufacturer:

NEC

File Size:

319.56 KB

Description:

UPD78F9177

Features

* Pin compatible with mask ROM version (except VPP pin) Flash memory: 24 Kbytes High-speed RAM: 512 bytes Minimum instruction execution time can be changed from high-speed (0.4 µs: @5.0-MHz operation with main system clock) to ultra

Applications

* Power windows, battery management unit, side air bags, etc ORDERING INFORMATION (1) µPD78F9177 Part Number Package 44-pin plastic QFP (10 × 10) µPD78F9177GB-8ES (2) µPD78F9177Y Part Number Package 44-pin plastic LQFP (10 X 10) 48-pin plastic TQFP (fine pitch) (7 X 7) µPD78F9177YGB-8ES µPD78F9177
