EC2-3SNP, EC2 Datasheet - NEC

EC2-3SNP, EC2, MINIATURE SIGNAL RELAY

DATA S H E E T MINIATURE SIGNAL RELAY EC2 SERIES COMPACT AND LIGHTWEIGHT, SMALL MOUNTING SIZE, HIGH BREAKDOWN VOLTAGE .
The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series.

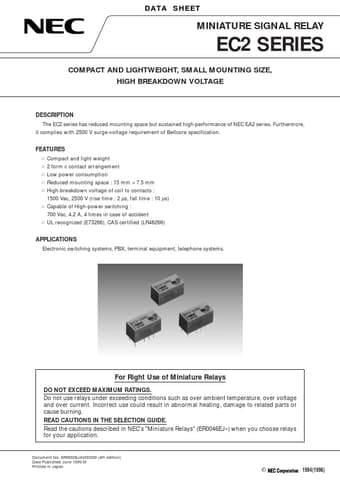

datasheet Preview Page 1 from Datasheet4u.com

EC2.pdf

EC2-3SNP Datasheet Preview — This datasheet PDF includes multiple part numbers: EC2-3SNP, EC2. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EC2-3SNP, EC2

Manufacturer:

NEC

File Size:

107.04 KB

Description:

MINIATURE SIGNAL RELAY

Note:

This datasheet PDF includes multiple part numbers: EC2-3SNP, EC2.
Please refer to the document for exact specifications by model.

Features

* ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of acc

Applications

* Electronic switching systems, PBX, terminal equipment, telephone systems. For Right Use of Miniature Relays DO NOT EXCEED MAXIMUM RATINGS. Do not use relays under exceeding conditions such as over ambient temperature, over voltage and over current. Incorrect use could result in abnormal heating, da
