EC2-4.5SNP, EC2 Datasheet - NEC

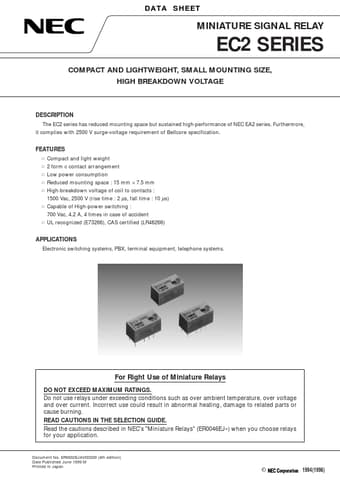

EC2-4.5SNP MINIATURE SIGNAL RELAY

EC2-4.5SNP Features

* ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of acc

EC2.pdf

This datasheet PDF includes multiple part numbers: EC2-4.5SNP, EC2. Please refer to the document for exact specifications by model.
EC2-4.5SNP Datasheet Preview Page 2 EC2-4.5SNP Datasheet Preview Page 3

Datasheet Details

Part number:

EC2-4.5SNP, EC2

Manufacturer:

NEC

File Size:

107.04 KB

Description:

Miniature signal relay.

Note:

This datasheet PDF includes multiple part numbers: EC2-4.5SNP, EC2.
Please refer to the document for exact specifications by model.
