EC2-6S

MINIATURE SIGNAL RELAY

NEC

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	Sullins Connector Solutions	PEC26SAHN	CONN HEADER VERT 26POS 2.54MM	DigiKey	0	500 units	$1.69	🛒 Buy Now

EC2-6S Datasheet (107.04 KB)

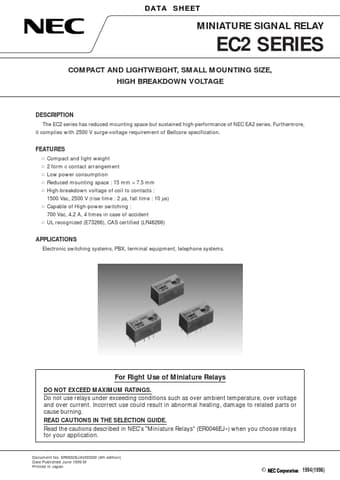

EC2-6S Datasheet Preview — Preview of EC2-6S PDF

Datasheet Details

Part number:

EC2-6S

Manufacturer:

NEC

File Size:

107.04 KB

Description:

Miniature signal relay.

EC2-6S Features

* ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of acc
