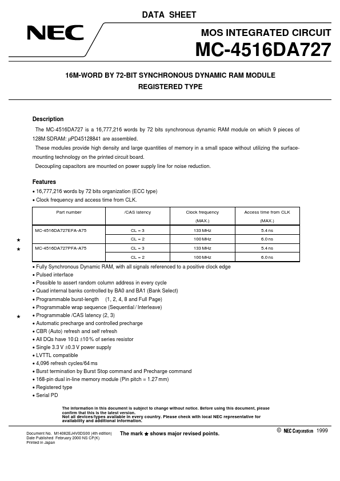

MC-4516DA727 - 16M-WORD BY 72-BIT SYNCHRONOUS DYNAMIC RAM MODULE

NEC

Datasheet Details

The MC-4516DA727 is a 16,777,216 words by 72 bits synchronous dynamic RAM module on which 9 pieces of 128M SDRAM: µPD45128841 are assembled.

16,777,216 words by 72 bits organization (ECC type).
Clock frequency and access time from CLK. Part number /CAS latency Clock frequency (MAX. ) MC-4516DA727EFA-A75 CL = 3 CL = 2 MC-4516DA727PFA-A75 CL = 3 CL = 2 133 MHz 100 MHz 133 MHz 100 MHz Access time from CLK (MAX. ) 5.4 ns 6.0 ns 5.4 ns 6.0 ns 5 5.
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge.
Pulsed interface.
Possible to assert random column address in e.
