NL10276BC30-04 TFT COLOR LCD MODULE

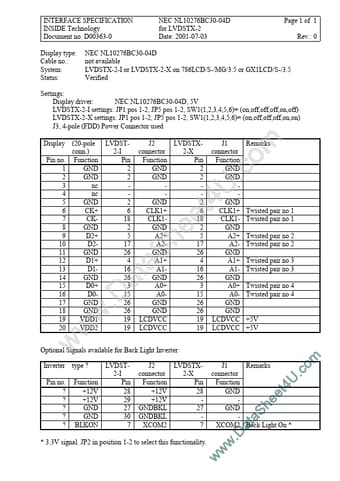

INTERFACE SPECIFICATION INSIDE Technology Document no. D00363-0 Display type: Cable no.: System: Status: NEC NL10276BC30-04D for LVDSTX-2 Date: 2001-07-03 Page 1 of 1 Rev.: 0 NEC NL10276BC30-04D not available LVDSTX-2-I or LVDSTX-2-X on 786LCD/S-/MG/3.5 or GX1LCD/S-/3.5 Verified Settings: Display driver: NEC NL10276BC30-04D, 5V LVDSTX-2-I settings: JP1 pos 1-2, JP5 pos 1-2, SW1(1,2,3,4,5,6)= (on,off,off,off,on,off) LVDSTX-2-X settings: JP1 pos 1-2, JP5 pos 1-2, SW1(1,2,3,4,5,6)= (on,off,off,.

NL10276BC30_04_NEC.pdf

This datasheet PDF includes multiple part numbers: NL10276BC30-04, NL10276BC30_04. Please refer to the document for exact specifications by model.
