NL6448BC33-46 - TFT COLOR LCD MODULE

Features

  • High luminance.
  • Wide viewing angle.
  • High contrast.
  • 6-bit digital RGB signals.
  • Reversible-scan direction.
  • Edge light type.
  • Replaceable lamp for backlight unit (Inverter less).
  • Acquisition product for UL/c-UL Document No. EN0536EJ2V0DS 00 (2nd edition) Date Published December 2001 N CP(N) Printed in Japan © 2001 www. DataSheet4U. com NL6448BC33-46.

📥 Download Datasheet

Datasheet preview – NL6448BC33-46

Datasheet Details

Part number NL6448BC33-46
Manufacturer NEC
File Size 621.63 KB
Description TFT COLOR LCD MODULE
Datasheet download datasheet NL6448BC33-46 Datasheet
Additional preview pages of the NL6448BC33-46 datasheet.

📁 Similar Datasheet

Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

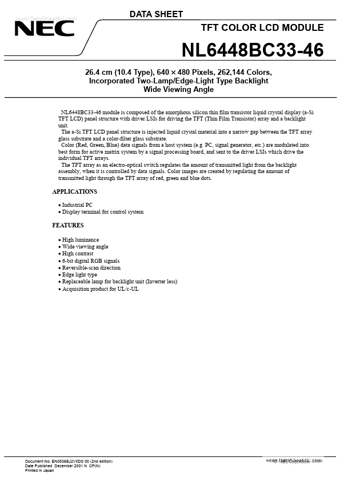

www.DataSheet4U.com DATA SHEET TFT COLOR LCD MODULE NL6448BC33-46 26.4 cm (10.4 Type), 640 × 480 Pixels, 262,144 Colors, Incorporated Two-Lamp/Edge-Light Type Backlight Wide Viewing Angle NL6448BC33-46 module is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight unit. The a-Si TFT LCD panel structure is injected liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g. PC, signal generator, etc.
