NL8060BC31-17 - LCD

Description

The NL8060BC31-17 is a TFT (thin film transistor) active-matrix color liquid crystal display (LCD) module comprising an amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight.

The NL8060BC31-17 has a built-in backlight.

Features

  • High luminance (350 cd/m , at IL = 5mA rms/lamp) 2.
  • Wide viewing angle (with retardation film).
  • Low reflection.
  • Reversible scan direction.
  • 6-bit digital RGB input signals.
  • Data enable (DE) function.
  • Smooth polarizer surface.
  • Edge-type backlight with two long-life lamps (one lamp holder).
  • Replaceable lamp holder.

📥 Download Datasheet

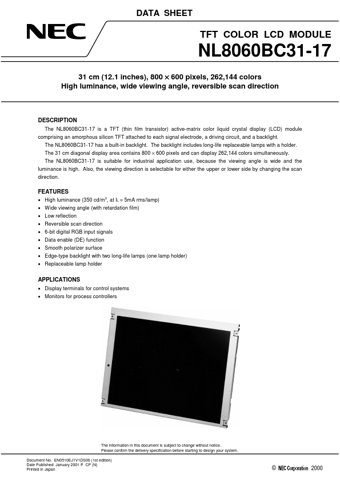

Datasheet preview – NL8060BC31-17

Datasheet Details

Part number NL8060BC31-17
Manufacturer NEC
File Size 286.19 KB
Description LCD
Datasheet download datasheet NL8060BC31-17 Datasheet
Additional preview pages of the NL8060BC31-17 datasheet.

📁 Similar Datasheet

Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text
www.DataSheet.co.kr DATA SHEET TFT COLOR LCD MODULE NL8060BC31-17 31 cm (12.1 inches), 800 × 600 pixels, 262,144 colors High luminance, wide viewing angle, reversible scan direction DESCRIPTION The NL8060BC31-17 is a TFT (thin film transistor) active-matrix color liquid crystal display (LCD) module comprising an amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight. The NL8060BC31-17 has a built-in backlight. The backlight includes long-life replaceable lamps with a holder. The 31 cm diagonal display area contains 800 × 600 pixels and can display 262,144 colors simultaneously. The NL8060BC31-17 is suitable for industrial application use, because the viewing angle is wide and the luminance is high.
