SM130G0, SM110G0 Datasheet - NEC

SM130G0 - Thermal Cutoff SEFUSE

DATA SHEET Thermal Cutoff SEFUSETM SM/G SERIES FUSIBLE ALLOY THERMAL SENSITIVE TYPE, 0.5 AMPERES (250 Va.c.) and 3 and 5 AMPERES (50 Vd.c.) Rated Current The NEC's SEFUSE (SM/G series) is a small, solid and reliable thermal cutoff that can be used under 0.5 A / 250 Vac.

3 and 5 ampere / 50 Vdc.

electrical rating type, added to the product line-up lately, is also available.

It protects home appliances and industrial equipment from fire and accident by opening of electrical circuit if it senses a

SM130G0 Features

* ™ Approved by UL (USA), CSA (Canada), VDE (Germany), BEAB (UK) and MITI (Japan) ™ Very small ™ Conpact, durable and veliable by hermetic seal structure. ™ Excellent sensitive to abnormal temperature rise and high accuracy in operation. ™ Stable characteristics in a long-term. ™ Capable of opening at

SM110G0-NEC.pdf

This datasheet PDF includes multiple part numbers: SM130G0, SM110G0. Please refer to the document for exact specifications by model.

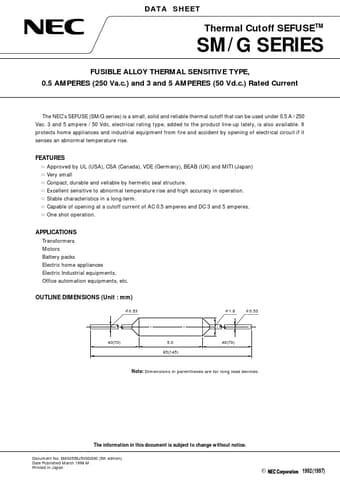

SM130G0 Datasheet Preview Page 2 SM130G0 Datasheet Preview Page 3

Datasheet Details

Part number:

SM130G0, SM110G0

Manufacturer:

NEC

File Size:

65.42 KB

Description:

Thermal cutoff sefuse.

Note:

This datasheet PDF includes multiple part numbers: SM130G0, SM110G0.
Please refer to the document for exact specifications by model.
