UPC2406AHF - THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR

Product Overview

NEC

📥 Download Datasheet

UPC2406AHF THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR by NEC - Datasheet Preview — Datasheet preview – UPC2406AHF

Datasheet Details

Part number	UPC2406AHF
Manufacturer	NEC
File Size	103.95 KB
Description	THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR
Datasheet	UPC2406AHF Datasheet

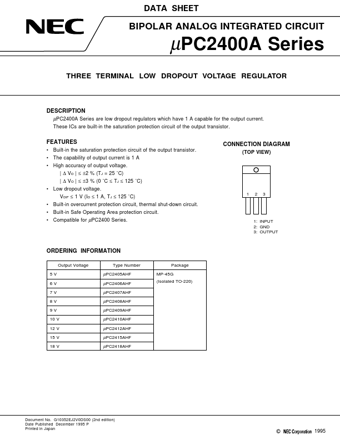

Additional preview pages of the UPC2406AHF datasheet.

Product details

Description

µPC2400A Series are low dropout regulators which have 1 A capable for the output current.

Features

Built-in the saturation protection circuit of the output transistor.
The capability of output current is 1 A.
High accuracy of output voltage. | ∆ VO | ≤ ±2 % (TJ = 25 ˚C) | ∆ VO | ≤ ±3 % (0 ˚C ≤ TJ ≤ 125 ˚C).
Low dropout voltage. VDIF ≤ 1 V (IO ≤ 1 A, TJ ≤ 125 ˚C).
Built-in overcurrent protection circuit, thermal shut-down circuit.
Built-in Safe Operating Area protection circuit.
Compatible for µPC2400 Series.
