UPC24M00A - THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR

Product Overview

NEC

📥 Download Datasheet

UPC24M00A THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR by NEC - Datasheet Preview — Datasheet preview – UPC24M00A

Datasheet Details

Part number	UPC24M00A
Manufacturer	NEC
File Size	99.56 KB
Description	THREE TERMINAL LOW DROPOUT VOLTAGE REGULATOR
Datasheet	UPC24M00A Datasheet

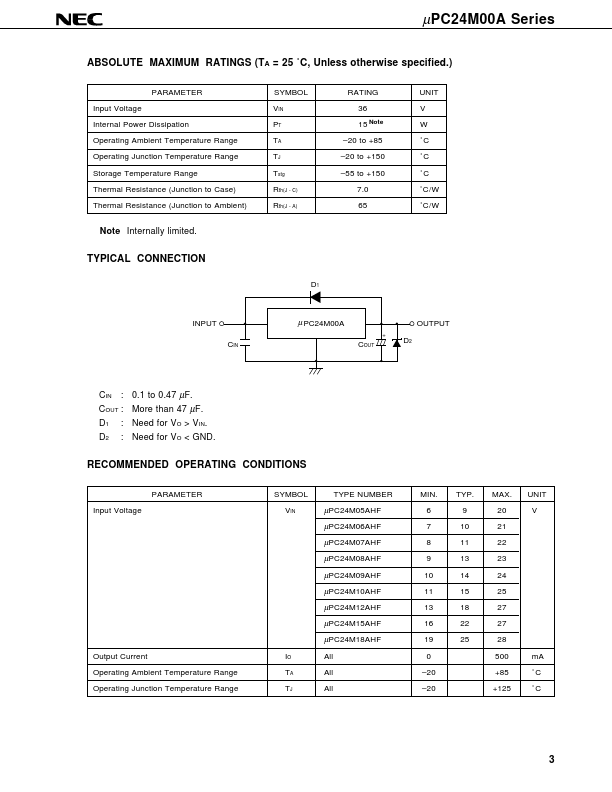

Additional preview pages of the UPC24M00A datasheet.

Product details

Description

µPC24M00A Series are low dropout regulators which have 500 mA capable for output current.

Features

Built-in the saturaiton protection circuit of the output transistor.
The capability of output current is 500 mA.
High accuracy of output voltage. | ∆ VO | ≤ ±2 % (TJ = 25 ˚C) | ∆ VO | ≤ ±3 % (0 ˚C ≤ TJ ≤ 125 ˚C).
Low dropout voltage. VDIF ≤ 1 V (IO ≤ 500 mA, TJ ≤ 125 ˚C).
Built-in overcurrent protection circuit, thermal shut-down circuit.
Built-in Safe Operating Area protection circuit.
Compatible for µPC24M00 Series.
