UPC4570HA, UPC4570, DUAL OPERATIONAL AMPLIFIER

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT µPC4570 ULTRA LOW-NOISE, WIDEBAND, DUAL OPERATIONAL AMPLIFIER .
The µPC4570 is an ultra low-noise, wideband high slew-rate, dual operational amplifier.

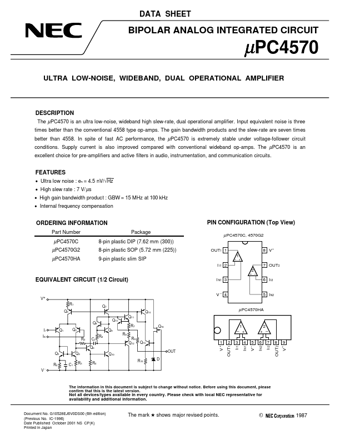

datasheet Preview Page 1 from Datasheet4u.com

UPC4570_NEC.pdf

UPC4570HA Datasheet Preview — This datasheet PDF includes multiple part numbers: UPC4570HA, UPC4570. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UPC4570HA, UPC4570

Manufacturer:

NEC

File Size:

76.53 KB

Description:

DUAL OPERATIONAL AMPLIFIER

Note:

This datasheet PDF includes multiple part numbers: UPC4570HA, UPC4570.
Please refer to the document for exact specifications by model.

Features

* Ultra low noise : en = 4.5 nV/√Hz
* High slew rate : 7 V/µs
* High gain bandwidth product : GBW = 15 MHz at 100 kHz
* Internal frequency compensation ORDERING INFORMATION Part Number Package µPC4570C 8-pin plastic DIP (7.62 mm (300)) µPC4570G2 8-pin plastic S
