UPD160040 - 384-OUTPUT TFT-LCD SOURCE DRIVER

Product Overview

NEC

UPD160040 384-OUTPUT TFT-LCD SOURCE DRIVER by NEC - Datasheet Preview — Datasheet preview – UPD160040

Datasheet Details

Part number	UPD160040
Manufacturer	NEC
File Size	185.88 KB
Description	384-OUTPUT TFT-LCD SOURCE DRIVER
Datasheet	UPD160040 Datasheet

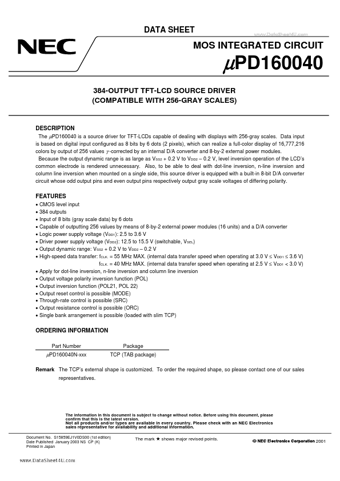

Additional preview pages of the UPD160040 datasheet.

Product details

Description

The µPD160040 is a source driver for TFT-LCDs capable of dealing with displays with 256-gray scales. 0.2 V, level inversion operation of the LCD’s common electrode is rendered unne

Features

CMOS level input.
384 outputs.
Input of 8 bits (gray scale data) by 6 dots.
Capable of outputting 256 values by means of 8-by-2 external power modules (16 units) and a D/A converter.
Logic power supply voltage (VDD1): 2.5 to 3.6 V.
Driver power supply voltage (VDD2): 12.5 to 15.5 V (switchable, VSEL).
Output dynamic range: VSS2 + 0.2 V to VDD2.
0.2 V.
High-speed data transfer: fCLK. = 55 MHz MAX. (internal data tra.
