UPD2845GR - 1 V 1.3 mA 94MHz PLL SYNTHESIZER LSI

Datasheet Summary

Description

PPD2845GR is a PLL synthesizer LSI for pager system.

This LSI is manufactured using low voltage CMOS process and therefore realized the low power consumption PLL operated on 1 V, 1.3 mA.

This LSI is packaged in 16 pin plastic SSOP suitable for high-density surface mounting.

Features

  • Operating frequency :.
  • Input frequency : fin = 10 MHz to 94 MHz.
  • Reference oscillating frequency : fx’tal = 12.8 MHz.
  • Low Supply voltage :.
  • PLL block : V DD1 = 1.00 V to 1.15 V @ fin = 10 MHz to 70 MHz VDD1 = 1.05 V to 1.15 V @ fin = 10 MHz to 94 MHz.
  • Charge pump block: VDD2 = 3.0 V ± 300 mV.
  • Low power consumption.
  • IDD = 1.3 mA TYP. @ fin = 70 MHz, fx’tal = 12.8 MHz.
  • Equipped with power-save function.
  • Serial data can be r.

📥 Download Datasheet

Datasheet preview – UPD2845GR

Datasheet Details

Part number UPD2845GR
Manufacturer NEC
File Size 144.53 KB
Description 1 V 1.3 mA 94MHz PLL SYNTHESIZER LSI
Datasheet download datasheet UPD2845GR Datasheet

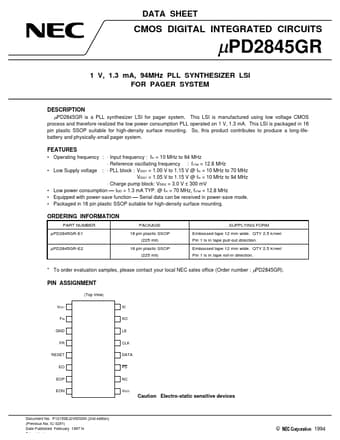

Additional preview pages of the UPD2845GR datasheet.

📁 Similar Datasheet

  • UPD2833C - (UPD2833C / UPD2834C) PLL - LSI (NEC Electronics)
  • UPD2834C - (UPD2833C / UPD2834C) PLL - LSI (NEC Electronics)
  • UPD28C64AGX-15 - C-MOS 64K(8K 8)-BIT EEPROM (ETC)
  • UPD2010AL - 1K-Bit Static MOS RAM (NEC Electronics)
  • UPD2101AL - 1K-Bit Static MOS RAM (NEC Electronics)
  • UPD2102AL - 1K-Bit Fully Decoded Static MOS RAM (NEC Electronics)
  • UPD2364 - ROM 8192 words / 8-Bit (NEC Electronics)
  • UPD2364A - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD2364E - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD23C1000A - Mask Programmable CMOS ROM (NEC Electronics)
Other Datasheets by NEC
  • UPD2813C - Clock and Radio Frequency Counter / Display Circuit CMOS LSI
  • UPD2819C - Phase Locked Loop Frequency Synthesizer CMOS LSI
  • UPD28C04 - CMOS EEPROM
  • UPD28C64 - 65536-Bit Electrically Erasable And Programmable Read-Only Memory
  • UPD2101AL-2 - 1K-Bit Static MOS RAM
  • UPD2101AL-4 - 1K-Bit Static MOS RAM
  • UPD2102AL-2 - 1K-Bit Fully Decoded Static MOS RAM
  • UPD2102AL-4 - 1K-Bit Fully Decoded Static MOS RAM

Full PDF Text Transcription

Click to expand full text
DATA SHEET SHEET DATA CMOS DIGITAL INTEGRATED CIRCUITS PPD2845GR 1 V, 1.3 mA, 94MHz PLL SYNTHESIZER LSI FOR PAGER SYSTEM DESCRIPTION PPD2845GR is a PLL synthesizer LSI for pager system. This LSI is manufactured using low voltage CMOS process and therefore realized the low power consumption PLL operated on 1 V, 1.3 mA. This LSI is packaged in 16 pin plastic SSOP suitable for high-density surface mounting. So, this product contributes to produce a long-lifebattery and physically-small pager system. FEATURES • Operating frequency : · Input frequency : fin = 10 MHz to 94 MHz · Reference oscillating frequency : fx’tal = 12.8 MHz • Low Supply voltage : · PLL block : V DD1 = 1.00 V to 1.15 V @ fin = 10 MHz to 70 MHz VDD1 = 1.05 V to 1.
