UPD44325084 Datasheet - NEC

UPD44325084 (UPD44325xx4) 36M-BIT QDRII SRAM 4-WORD BURST OPERATION

The µPD44325084 is a 4,194,304-word by 8-bit, the µPD44325094 is a 4,194,304-word by 9-bit, the µPD44325184 is a 2,097,152-word by 18-bit and the µPD44325364 is a 1,048,576-word by 36-bit synchronous quad data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor me.

UPD44325084 Features

* 1.8 ± 0.1 V power supply and HSTL I/O

* DLL circuitry for wide output data valid window and future frequency scaling

* Separate independent read and write data ports with concurrent transactions

* 100% bus utilization DDR READ and WRITE operation

* Four-tick

UPD44325084 Datasheet (391.77 KB)

Preview of UPD44325084 PDF

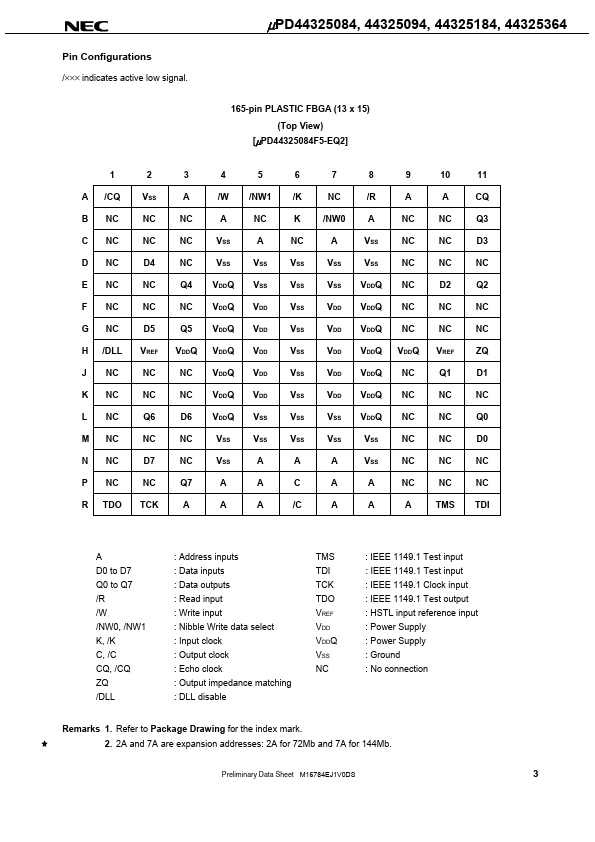

UPD44325084 Datasheet Preview Page 2 UPD44325084 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD44325084

Manufacturer:

NEC

File Size:

391.77 KB

Description:

(upd44325xx4) 36m-bit qdrii sram 4-word burst operation.
